Compact General Purpose Bucket For Compact Tractor Loaders
Duty Ratings, CAL Duty Ratings, Compact, General Purpose Buckets, Compact Tractor Loader, All Products
General Purpose Bucket Attachment Product Features:
- For compact tractor loaders and agricultural skid steers up to 50 horsepower
- Pre-drilled standard with 4" x 2" front cutting edge
- Models include 54", 60", 66" and 72"
- Bolt-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Compact Tooth Bar
Models
1GPCMP 1GPCMP54 1GPCMP54T 1GPCMP54E 1GPCMP54TB 1GPCMP60 1GPCMP60T 1GPCMP60E 1GPCMP60TB 1GPCMP66 1GPCMP66T 1GPCMP66E 1GPCMP66TB 1GPCMP72 1GPCMP72T 1GPCMP72E 1GPCMP72TB
Compact Root Grapple – Tractor Loader Attachment
Compact Root Grapples designed for compact tractor loaders up to 50 horsepower, and are the ideal attachment for removal of debris such as rocks, roots, and general site cleanup. Rear hitch is designed to match host machines. This grapple is available in 54", 60", 66" and 72" models.
Product Features:
- Maximum grapple clamping force: 2,500 lbs @ 2,800 psi
- Large grapple opening to accommodate the most demanding jobs
- Fully integrated 3/8” tines increasing grapple strength
- Bottom tines are tied together with 1 5/8” OD schedule 80 pipe
- Rear hitch designed to match host machine
- Models include 54”, 60”, 66” and 72”
- For compact tractor loaders up to 50 horsepower
- Ideal attachment for removal of debris such as rocks, roots, as well as general site clean-up
Compact Root Rake Grapple – Tractor Loader Attachment
Compact Root Rake Attachment designed for tractor loaders. Designed to handle a wide range of jobs for excavating roots, brush, rocks, and other debris to loosen and smooth the ground while leaving behind the soil. Also used for transport of brush and debris. Grapple lids may also be used for back-dragging. Ideal for construction, agriculture, landscaping, industrial, and many other applications.
Product Features:
- For tractor loaders up to 50 to 75 horsepower
- Available in 55”, 60”, 66”, & 72”
- ¾” Rake Tine Thickness
- Universal Skid Steer Quick Attach
- 1" Rake Tine Thickness
- 2.25" Cylinder Bore
- Hoses and couplers included
- Excavating roots, brush, rocks and other debris
- Loosen and smooth ground while leaving soil behind
- Transport brush and debris
- Grapple lid can be used for back-dragging
Compact Snow Blade Specialty Attachment
Compact Snow Blade is a specialty attachment with a four-way blade capable of up to 30 degrees of angle (left or right) with a manual or optional hydraulic kit*. This snow/dozer blade is designed for use on compact tractor loaders and skid steers up to 50 horsepower with a 22.5" moldboard and a 75 degree angle of attack at grade level. Attachment is available in 60", 72" and 82" wide models, Manual or Hydraulic operation, and Steel or Rubber edge options.
Compact Tractor Loader Grapple Bucket Attachment
Grapple Bucket Attachment is designed for compact tractor loaders with up to 50 horsepower. These attachments enable compact tractors to move hard-to-handle materials, as well as brush and other awkward debris. Grapple has up to 32" of open, fully usable space with no trapped space. This grapple bucket is available in 54", 60", 66", and 72" models.
PRODUCT FEATURES:
Enables compact tractors to move hard-to-handle materials, as well as brush and other awkward debris
Compliment to our popular compact root grapple line
Grapple opening of"32.25" fully usable, no trapped space
Lids are uniform between our compact root grapple and compact grapple bucket line
Maximum clamping force: 2,500 LBS 2,800 psi

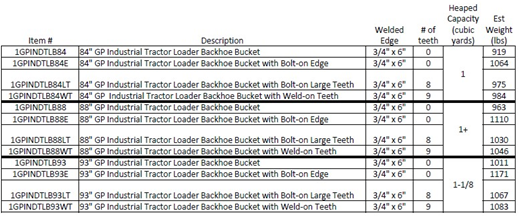

Industrial Tractor Loader Backhoe Bucket Attachment
Duty Ratings, CAL Duty Ratings, Industrial, General Purpose Buckets, Industrial Tractor Loader Backhoes, All Products
FOR INDUSTRIAL LOADERS AND TRACTOR LOADER BACKHOES INDUSTRIAL.
PRODUCT FEATURES:
- Designed specifically for industrial tractor loader backhoes
- 1/4" moldboard with 5/16" lower reinforcement and robust top bracket
- Integrated 5/16" bucket ribs on the back
- Bucket bottom reinforced with 1/2" X 3-1/2" wear strip
- 3/4" 1065 steel weld-in cutting edge is standard for all sizes
- 1085 steel bolt-on, reversible edges are available in every size
- Include 5/16" upper side cutters, in addition to lower side cutters of 1/2" X 4" weld-on cutting edge material
Industrial Tractor Loader Backhoe Construction Attachment 4-IN-1 Multi-Purpose Bucket
Duty Ratings, CAL Duty Ratings, Industrial, 4-In-1 Multi-Purpose Buckets, Industrial Tractor Loader Backhoes, All Products
Industrial Bucket 4-IN-1 Multi-Purpose construction attachment designed for industrial loaders and tractor loader backhoes. Pictured with optional swing-over pallet fork assembly. This bucket is available in 88" and 93" models with the following options: large bolt-on teeth and a reversible bolt-on cutting edge.
Note: Pictured with optional teeth
Product Features:
- For industrial loaders and tractor loader backhoes
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6" front cutting edge to accommodate all bolt-on options
- Reversible bolt-on edge standard for dozer section
- Cast steel hinges with replaceable bushing
- Models include 88" and 93"
- Bolt-on reversible rear clam edge for 88" only
Front edge options:
- Large Bolt-on Teeth
- Reversible Bolt-on Cutting Edge
Mini Root Grapple
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Compact Tractor Loaders, Mini, Mini Skid Steer, Mini Skid Steers (Walk-Behind), All Products
Mini Root Grapples are designed for ride-on, walk-behind mini skid steer track loaders up to 25 horsepower and select sub-compact tractors. Designed to handle a wide range of jobs for excavating roots, brush, rocks, and other debris to loosen the ground while leaving behind the soil. Also used for transporting brush and debris.
Mini Skeleton Bucket
Designed to fit ride-on or walk behind mini, sub-compact skid steer and track loaders.
PRODUCT FEATURES:
•Ideal for landscape work, sifting out rocks in soil, mining and sorting rock, scooping rocks, construction materials, brush, and general site clean-up
•1.75” tine spacing for screening
•Rock dam section for prolonged screening without losing material
•The combined low profile and extended bottom design maintain the operator’s line of sight
Mini Skeleton Grapple Bucket
Duty Ratings, CAL Duty Ratings, Mini, Mini Skid Steer, Specialty Attachments, Skeleton Buckets, Skid Steer Loaders, All Products
Mini Skeleton Grapple Bucket is designed to fit ride-on or walk behind mini, sub-compact skid steer and track loaders.
PRODUCT FEATURES:
•The combined low profile and extended-bottom design maintain the operator’s line of sight
•Rock dam section for prolonged screening without losing material
•Maximum grapple opening: 21”
•Includes hydraulic hoses and fittings
Severe Xtreme Duty Extended Bottom 4-IN-1 Multi-Purpose Bucket
Duty Ratings, CAL Duty Ratings, 4-In-1 Multi-Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Severe Xtreme, Skid Steer, Tractor Loaders, All Products
Severe Xtreme Duty Extended Bottom 4-IN-1 Multi-Purpose BucketSevere Xtreme Duty Extended Bottom Bucket 4-IN-1 Multi-Purpose Attachment is designed for rubber tire host machines up to 100 and rubber track host machines up to 80 horsepower. This bucket is available in 67" and 73" widths.
PRODUCT FEATURES:
Radius moldboard for improved material loading and unloading
Pre-drilled 6? x 3/4? front cutting edge to accommodate all bolt-on options
A solid 6? x 3/4? edge is attached to buckets with weld-on teeth
Bolt-on reversible rear clam edge and dozer edge are standard
Extra extended bottom for improved operator visibility
Maximum clamping force: 6,000 LBS @ 3,000 psi
Severe Xtreme Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Severe Xtreme, Grapple Attachments, Skid Steer Loaders, Track Loaders, All Products
Severe Xtreme Duty Grapple Bucket is designed for rubber tire host machines up to 130 horsepower. It is the ideal attachment for high-repetition use in harsh environments.
PRODUCT FEATURES:
- Ideal attachment for harsh environments
- Used for the removal of building, forestry, and scrap yard debris
- Low profile for improved load visibility
- 19" wide lids are uniform between our Root Grapple and Grapple Bucket lines
- Large grapple opening of over 44" designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 LBS @ 3,000 psi
- 3/4" x 6" weld-on cutting edge for all models
- Accepts a reversible bolt-on edge
- Radius moldboard for improved unloading and added strength
- 1" lid tines and heavily-gusseted lids
- Covered hoses for full protection in harsh environments
- Rear hitch designed to match host machine
- 3/4" lid tines and heavily-gusseted lids; neoprene bushings for high repetition
- Greaseable pins and 2-3/4" bore cushion cylinders
- Rear hitch designed to match host machine
Severe Xtreme Duty High Capacity 4-IN-1 Multi-Purpose Bucket
Duty Ratings, CAL Duty Ratings, 4-In-1 Multi-Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Severe Xtreme, Skid Steer, Tractor Loaders, All Products
Severe Xtreme Duty High Capacity 4-IN-1 Multi-Purpose Bucket is designed for rubber tire and rubber track host machines up to 130 horsepower. This bucket is available in 80" and 84" models with the following options: bolt-on large teeth, weld-on teeth, bolt-on cutting edge, bolt-on tooth bar and extended tooth bar.
Product Features:
- For rubber tire or rubber track host machines, loaders up to 130 horsepower
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6" front cutting edge to accommodate all bolt-on options
- Solid 6" edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section
- Models include 80" and 84"
Front edge options:
- Large Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
Severe Xtreme Duty Root Grapple
Duty Ratings, CAL Duty Ratings, Severe Xtreme, Grapple Attachments, Skid Steer Loaders, Track Loaders, All Products
Severe Xtreme Duty Root Grapple is designed for high repetition use on rubber tire or rubber track machines up to 130 horsepower. The ideal grapple for harsh environments.
PRODUCT FEATURES:
Ideal attachment for harsh environments, clearing brush, the removal of debris such as rocks, roots, as well as general site clean-up, scrap yards, industrial environments
Front gussets to act as stops for closing lids
Self-contained hydraulic system to minimize hose damage
Covered hoses for full protection in harsh environments
Designed to clamp evenly around load
Maximum grapple clamping force: 6,000 LBS @ 3,000 psi
3/4 lid tines and heavily-gusseted lids; neoprene bushings for high repetition
Greaseable pins and 2-3/4 bore cushion cylinders
Rear hitch designed to match host machine
Skeleton Grapple Bucket Xtreme Duty Attachment
Duty Ratings, CAL Duty Ratings, Specialty Attachments, Skeleton Buckets, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Skeleton Bucket with Grapple attachment for skid steer and tractor loaders is designed for aggressive landscaping applications. This bucket attachment can sift rocks and can be used in mining, rock sorting, rock scooping, and for various other materials in the construction process. The added grapple attachment extends the usefulness of the skeleton bucket.
Product Features:
- The combined low profile and extended-bottom design maintain the operators line of sight
- Models include 66, 73 and 82
- Maximum grapple opening: 43 "
- 2 7/16" tine spacing for screening
- Rock dam section for prolonged screening without losing material
- Price includes hydraulic hoses and fittings
- Skeleton Buckets also included, but sold separately
Stump Bucket Grapple Severe Xtreme Duty Attachment
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Compact Track Loaders, Severe Xtreme, Skid Steer Loaders, Specialty Attachments, Stump Buckets, All Products
The Severe Xtreme Duty Stump Bucket Grapple attachment features a bucket bottom with an aggressive tapered cutting edge. The attachment's angled cylinder maximizes strength with over 4,100 lbs of clamp force at the tip max at 3,000 psi. The design allows operators to take advantage of a huge 55" grapple opening to meet every challenge.
Product Features:
A — Bucket bottom reinforced and protected with a series of 1/2" x 2" ribs/wear-bars across the entire bottom surface
B — Tapered cutting edge with CNC cut tooth pattern allows real cutting action as opposed to teeth cut in standard "flat mild" steel that cannot effectively cut
C — Cylinder angle maximizes force while still offering a huge opening
D — Large diameter pins to reduce the wearing effects of repetition
- Angled grapple frame and 3/4" material result in unparalleled strength and rigidity
- Specially-designed load transfer plate
- 3" bore cylinder generates over 4,100 LBS of clamping force at the tip max at 3,000 psi
- Price includes hydraulic hoses and fittings
- Over 55" grapple opening
Ultra Duty General Purpose Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Ultra Duty, All Products
Ultra Duty General Purpose Attachment is designed for rubber tire and rubber track host machines up to 130 horsepower. This bucket is available in 73", 78", and 84" models and comes standard with bolt-on side cutters.
Product Features:
- 1" cutting edge
- AR plate wear strips
- moldboard
- Bolt-on side cutters come standard
- 5/16" side plates
- side plate reinforcements
- 5/16" top reinforcement
- 5/16" bottom reinforcement
- Excellent for high-wear applications such as concrete, stone, driveways, and sand
Front edge options:
- Bolt-on Side Cutters
- Bolt-on Teeth and Bolt-on Side Cutters
- Bolt-on Edge and Bolt-on Side Cutters
Ultra Duty High Capacity Landscape Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Tractor Loaders, Ultra Duty, All Products
FOR RUBBER TIRE OR RUBBER TRACK MACHINES UP TO 130 HORSEPOWER AND TRACTOR LOADERS FROM 80 HORSEPOWER TO 130 HORSEPOWER
PRODUCT FEATURES:
- 3/4" pre-drilled edge for bolt-on edge
- 3/4" solid edge material for weld-on teeth application
- 5/8" wear strips
- 3/8" edge reinforcements.
- 3/8" side plates
- 1/2" side cutter
- 8 upper reinforcement gussets
- For high volume loading and unloading
Worx Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Compact Track Loaders, Skid Steer Loaders, Worx Duty, All Products
Worx Duty Grapple Bucket Attachment is designed for skid steer loaders and compact track loaders 51-100 horsepower. This attachment enables you to move hard-to-handle materials, brushes, and other awkward debris. Grapple has up to 44" of fully usable space with no trapped space. This grapple bucket is available in 60", 67", 73", and 82" models.
Product Features:
- Grapple opening of 44" — fully usable, no trapped space
- Lids are uniform between our Worx Duty root grapple and Worx Duty grapple bucket line
- Standard reversible front bolt-on cutting edge
- Maximum clamping force of 3,600 lbs @ 3,000 psi
- A pair of 3/16" load transfer plates eliminates flex between the moldboard and hinge frame
- Radius moldboard for strength and easy unloading
- 5/8" x 6" bolt-on reversible cutting edge on 60"-82" models
- 11 lid tines on 1" pivot pins with robust broken-out lid decks for strength
- Covered hoses for full protection in harsh environments
- Models include 60", 67", 73" and 82"
- Skid steer loaders and compact track loaders with 51 - 100 horsepower
- Enables operator to move hard-to-handle materials, as well as brush and other awkward debris
- Compliment to our popular Worx Duty root grapple line
Worx Duty Root Grapple
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Worx Duty, All Products
Worx Duty Root Grapples are designed for skid steer loaders and tractor loaders 51-100 horsepower. These attachments are ideal for the removal of debris such as rocks and roots, as well as general site clean-up. Rear hitch is designed to match host machines. This grapple is available in 66", 73", 78", and 84" models.
Product Features:
- Maximum grapple clamping force: 3,600 lbs @ 3,000 psi
- Large grapple opening to accommodate the most demanding jobs
- Fully integrated 3/8" tines increase grapple strength
- ?? lid tines on 1" pivot pins with robust broken-out lid decks for strength
- Covered hoses for protection in harsh environments
- Rear hitch designed to match host machine
- Models include 66", 73", 78" and 84"
- For skid steer loaders and tractor loaders with 51 - 100 horsepower
- Ideal attachment for removal of debris such as rocks and roots, as well as general site clean-up
Xtreme Duty Agricultural Standard Back Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Tractor Loaders, Tractors, Xtreme Duty, All Products
The Extreme Duty Agricultural Standard Back Bucket for general-purpose use on tractors from 50 to 120 horsepower. This bucket features a solid standard edge and a standard 27" tall back design. This agricultural tractor bucket attachment is available in 74", 84", and 93" models.
Product Features:
- Bucket dimensions are 27" tall x 29" deep
- Models include 74", 84" and 93"
- Solid standard edge
- General-purpose use for tractors from 50 to 120 horsepower
Xtreme Duty Boom Pole
Xtreme Duty Boom Pole is manufactured for skid steer loaders and tractor loaders by Construction Attachments, Inc. These specialty attachments are designed to carry miscellaneous heavy loads with an open hook or closed lug.
Product Features:
Overhung loads on a boom pole will change the center of gravity for your machine. Load ratings will decrease from the published loads for buckets and forks. Ensure that your machine can safely handle loads lifted at 7’ forward of your hitch.
- For skid steer loaders and tractor loaders
- Designed for carrying miscellaneous heavy loads
- Ideal tool for pick-and-place operations under tight conditions
- Open hook or a closed lug to suit your application
- 84" Boom Pole
- Available with 45" standard frame
- 57" wide frame models also available
- 1,800 lbs. Lift Capacity
Overhung loads on a boom pole will change the center of gravity for your machine. Load ratings will decrease from the published loads for buckets and forks. Ensure that your machine can safely handle loads lifted at 7’ forward of your hitch.
Xtreme Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Grapple Bucket Attachment designed for skid steer and tractor loaders 51-150 horsepower. Grapple buckets are designed for harsh environments to be used to remove building, forestry, and scrap yard debris. Large opening of over 44" to clamp large loads evenly. This grapple bucket is available in 60", 67", 73", and 82" models.
Product Features:
- Low profile for improved load visibility
- 19 wide lids are uniform between our Root Grapple and Grapple Bucket lines
- Large grapple opening of over 44 designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 lbs @ 3,000 psi
- 5/8" x 6" bolt-on reversible cutting edge for all models
- Radius mold board for improved unloading and added strength
- lid tines and heavily-gusseted lids
- 1 pivot pins and 2" bore cylinders
- Covered hoses for full protection in harsh environments
- Rear hitch designed to match host machine
- Models include 60, 67, 73 and 82
- For skid steer loaders and tractor loaders with 51 - 150 horsepower
- Ideal attachment for harsh environments
- Used for the removal of building, forestry and scrap yard debris
Xtreme Duty Heavy Lift Pallet Forks
Duty Ratings, CAL Duty Ratings, Pallet Fork Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Pallet Forks designed with heavy lift capacity for skid steer and tractor loaders. Top guard is designed for maximum visibility. Adjustable fork widths from 6.5" to 44.75" for standard frame and from 6.5' to 56.5" for wide frame. Forged tines meet ITA standards for strength and durability. Available in 42", 48", 60", 72", 96" models.
Xtreme Duty High Capacity 4-IN-1 Multi-Purpose Bucket
Duty Ratings, CAL Duty Ratings, 4-In-1 Multi-Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Skid Steer, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty High Capacity Bucket Bucket 4-IN-1 Multi-Purpose Attachment is designed for rubber tire host machines up to 100 horsepower and rubber track host machines up to 80 horsepower. This bucket is available in 67", 73", and 76" with the following options: bolt-on teeth, weld-on teeth, bolt-on cutting edge, bolt-on tooth bar, and extended tooth bar.
Product Features:
- For rubber tire or rubber track host machines, loaders up to 130 horsepower
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6" front cutting edge to accommodate all bolt-on options
- Solid 6" edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section
- Models include 80" and 84"
Front edge options:
- Large Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
Xtreme Duty High Capacity Light Material General Purpose Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Xtreme Duty, All Products
The Extreme Duty Xtreme Duty High-Capacity Light Material General Purpose Bucket Attachment is designed with a radius moldboard for improved material loading and unloading. Designed for compatibility with rubber tire and rubber track host machines. This bucket is available in 66", 72", 78" and 84" models with a Reversible Bolt-on Cutting Edge option.
Product Features:
- For rubber tire or rubber track host machines
- Extended bottom design provides front edge visibility for machine operator
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant x 6 front cutting edge to accommodate bolt-on reversible cutting edge
- Specifically designed for low density materials such as mulch, grain, snow, etc.
- Not for grade
- Models include 66, 72, 78 and 84
- Reversible Bolt-on Cutting Edge

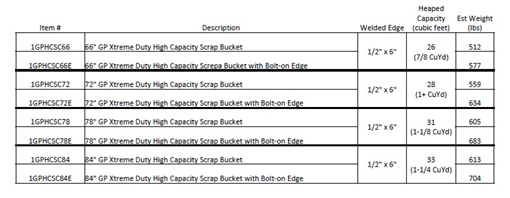

Xtreme Duty High Capacity Scrap Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Xtreme Duty, All Products
XTREME DUTY HIGH CAPACITY SCRAP, MULCH, SNOW FOR RUBBER TIRE MACHINES UP TO 100 HORSEPOWER OR RUBBER TRACK MACHINES UP TO 80 HORSEPOWER.
PRODUCT FEATURES:
- Extended bottom design provides front edge visibility, for machine operator
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant, 1/2" x 6" front cutting edge to accommodate bolt-on reversible cutting edge
- Specifically designed for low density materials such as mulch, grain, snow, construction debris etc., not for grading
- Higher sides allow for more capacity/volume
Xtreme Duty Low Capacity 4-IN-1 Multi-Purpose Bucket
Duty Ratings, CAL Duty Ratings, 4-In-1 Multi-Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Skid Steer, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Low Capacity Bucket 4-IN-1 Multi-Purpose Attachment is designed for improved material loading and unloading on rubber tire or track host machines up to 100 horsepower. These buckets feature radius moldboard, low profile and attachment options for bolt-on teeth, cutting edge, and tooth bar. This attachment is available in 60", 67" and 73"
Xtreme Duty Low Profile 4-IN-1 Multi-Purpose Bucket
Duty Ratings, CAL Duty Ratings, 4-In-1 Multi-Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Skid Steer, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Low Profile Bucket 4-IN-1 Multi-Purpose Attachment is designed for rubber tire host machines up to 100 and rubber track host machines up to 80 horsepower. This bucket is available in 67", 73", and 76" with the following options: bolt-on teeth, weld-on teeth, bolt-on cutting edge, bolt-on tooth bar, and extended tooth bar.
Product Features:
- For rubber tire host machines up to 100 horsepower or rubber track host machines up to 80 horsepower
- Low profile for improved load visibility
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6? x 5/8? front cutting edge to accommodate all bolt-on options
- solid 6? x ?? edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section
- Models include 67?, 73? and 76?
Front edge options:
- Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
Xtreme Duty Nursery Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Xtreme Duty, All Products
Xtreme Duty nursery bucket designed for rubber tire machines up to 100 horsepower or rubber track machines up to 80 horsepower.
PRODUCT FEATURES:
Extended bottom design provides front edge visibility for machine operator
Specifically designed for transporting nursery stock, not for grading
Lightweightremoveable top guard
Xtreme Duty Root Grapple
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Root Grapples are designed for skid steers and tractor loaders with 51-150 horsepower. These attachments are ideal for the removal of debris such as rocks and roots, as well as general site clean-up. Rear hitch is designed to match host machines. This grapple is available in 66", 73", 78", and 84" models.
Product Features:
- Front gussets to act as stops for closing lids
- Self-contained hydraulic system to minimize hose damage
- Covered hoses for full protection in harsh environments
- Designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 lbs @ 3,000 psi
- lid tines and heavily-gusseted lids
- 1" pivot pins and 2" bore cylinders
- Rear hitch designed to match host machine
- Models include 66", 73", 78" and 84"
- For skid steer loaders and tractor loaders with 51-150 horsepower
- Ideal attachment for harsh environments, clearing brush, the removal of debris such as rocks and roots, as well as general site clean-up
Xtreme Duty Root Rake Grapple
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Root Rake Attachment designed for skid steer and tractor loaders. Designed to handle a wide range of jobs for excavating roots, brush, rocks, and other debris to loosen and smooth the ground while leaving behind the soil. Also used for transport of brush and debris. Grapple lids may also be used for back-dragging. May also be purchased as rake only.
Product Features:
- Available in 74", 80", and 86"
- Rake may be purchased with or without grapple
- 1.5" Rake Tine Thickness
- 2" Cylinder Bore
- Safety Check Valve
- Replaceable Teeth
- Brush Guard for operator safety
- Hoses and Couplers Included
- For skid steer loaders and tractor loaders
- Designed to excavate roots, brush, rocks, and other debris
- Loosen and smooth the ground while leaving behind the soil
- Transport brush and debris
- Used for the removal of building, forestry and scrap yard debris
Xtreme Duty Snow Blade Attachment
Xtreme Duty Snow Blade is a specialty attachment with a four-way blade capable of up to 30 degrees of angle (left or right) with a manual or optional hydraulic kit*. Designed for rubber tire skid steer, compact track loaders and tractor loaders up to 100 hp and a 30" moldboard. This dozer blade is available in either an 84", 93" or 108" wide model (7 - 9 feet wide), with Manual or Hydraulic operation. The blade also had an available Steel or Rubber edge option and a high visibility dozer guide for use and accuracy in low-light and high-snow conditions.
Xtreme Duty Standard Bottom Low Profile General Purpose Bucket
Duty Ratings, CAL Duty Ratings, General Purpose Buckets, Rubber Tire Machines, Rubber Track Machines, Xtreme Duty, All Products
The Extreme Duty Standard Bottom Low Profile General Purpose Bucket Attachment is designed with a high-strength, abrasion-resistant front cutting edge pre-drilled to accommodate bolt-on attachment options and is designed for compatibility with rubber tire host machines up to 100 horsepower or rubber track host machines up to 80 horsepower. This bucket is available in 62", 66", 72", 78", and 84" models.
Product Features:
- For rubber tire host machines up to 100 horsepower, or rubber track host machines up to 80 horsepower
- Standard bottom design increases front edge breakout force
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant front cutting edge to accommodate all bolt-on attachments
- A solid edge is attached to buckets with weld-on teeth
- Models include 62", 66", 72", 78" and 84"
- Bucket sizes 62", 78" have a 5/8" x 6"welded cutting edge
- 84? buckets have a 6" welded cutting edge
- Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar
- Large Bolt-on Teeth (for 84" only)
Xtreme Duty Swing-Over Pallet Fork Assembly
Duty Ratings, CAL Duty Ratings, Pallet Fork Attachments, Tractor Loader Backhoes, Xtreme Duty, All Products
The Swing-Over Pallet Fork Assembly is designed for industrial loaders and tractor loader backhoes to enabling more capability for you from a backhoe bucket you already own without the need for separate construction attachments. These forks fold for easy storage and fit most general and multi-purpose buckets.
Xtreme Duty Tree Boom
Xtreme Duty Tree Boom manufactured in the USA by Construction Attachments, Inc. is designed for use on skid steer loaders and tractor loaders. This specialty attachment enables the operator to easily pick up trees to be planted, transported or loaded... perfect for landscaping, greenhouses, orchards and tree farms.
