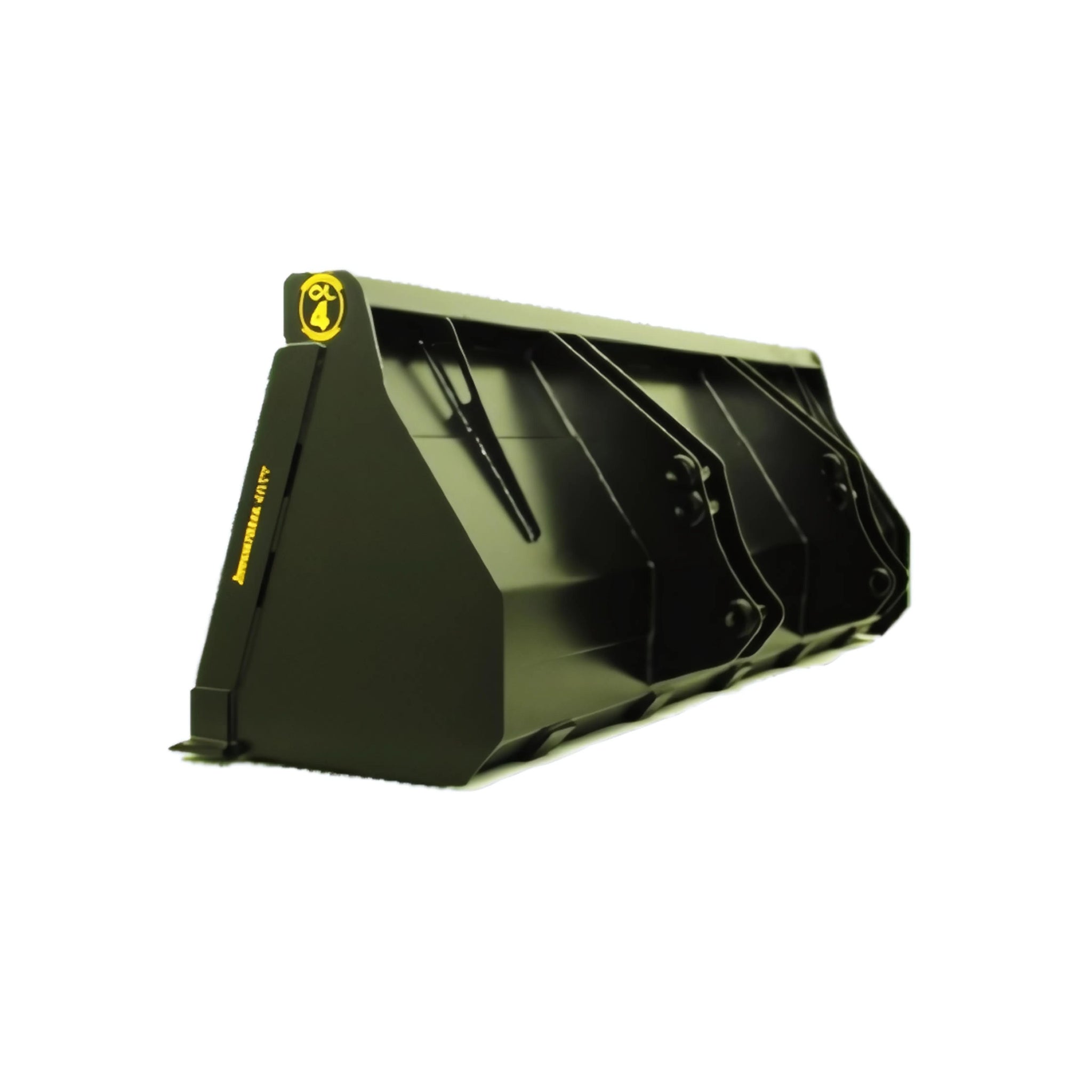

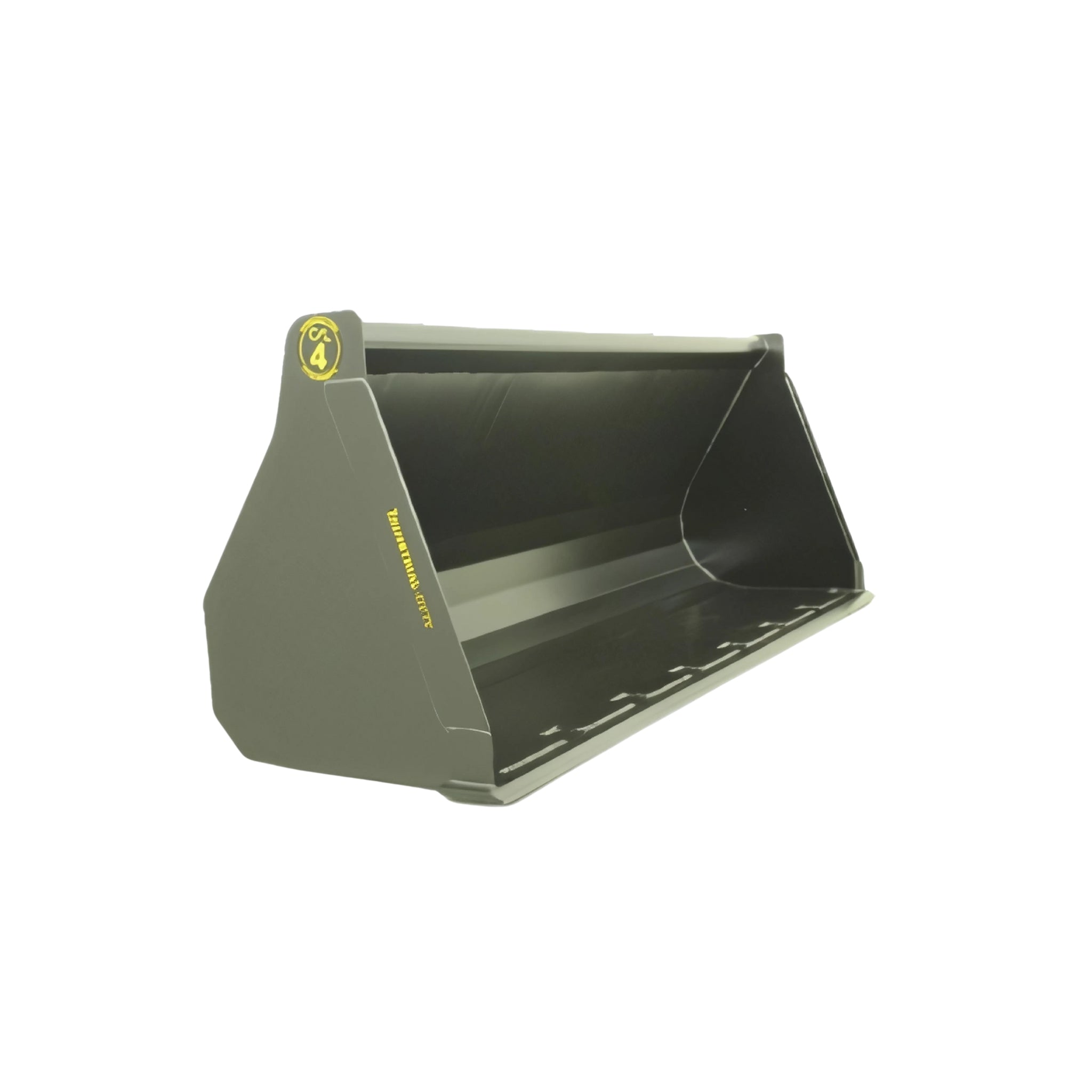

Industrial Tractor Loader Backhoe Bucket Attachment
FOR INDUSTRIAL LOADERS AND TRACTOR LOADER BACKHOES INDUSTRIAL.
PRODUCT FEATURES:
- Designed specifically for industrial tractor loader backhoes
- 1/4″ moldboard with 5/16″ lower reinforcement and robust top bracket
- Integrated 5/16″ bucket ribs on the back
- Bucket bottom reinforced with 1/2″ X 3-1/2″ wear strip
- 3/4″ 1065 steel weld-in cutting edge is standard for all sizes
- 1085 steel bolt-on, reversible edges are available in every size
- Include 5/16″ upper side cutters, in addition to lower side cutters of 1/2″ X 4″ weld-on cutting edge material
Shipping & Delivery
Related products
Bolt-On and Weld-On Teeth
Bolt-On Teeth are for use with all Construction Attachment general purpose and 4-in-1 multi-purpose buckets when digging, excavating or loosening compacted soil.
6BTCTE05: Regular Bolt on Tooth
GP: Compact 60” to 72” & Xtreme 62” to 78”
4in1: Compact 54” to 72” & Xtreme 60” to 76”
6BTCTE34: Large Bolt on Tooth
GP: Xtreme 84”, Severe Xtreme 67” to 88”, Ultra 73” to 84”
4in1: Severe Xtreme 67” to 84”, Ultra 73” to 84”, Industrial 88” to 93”
6BTCTE34: has replaceable tips & roll pin
6BTCTI01: AD-156 Tip
6BTCPI01: 156 Coil Roll Pin
6BTCTE06: GP & 4in1 Weld on Tooth
GP: Xtreme 62” to 84”, Severe Xtreme 67” to 88”
4in1: Xtreme 67” to 76”, Severe Xtreme 67” to 84”, Ultra 73” to 84”
6BTCTE06 has replaceable tip & pin
6BTCTI03: 8330 Tip
6BTCPI02: RP-H23 Rubber Flex Pin
Bolt-On Reversible Cutting Edge
Bolt-On Reversible Cutting Edges are designed to add protection and longevity to your original front edge on Construction Attachments general purpose and multi-purpose buckets. Made from high strength 1080 High Carbon Steel. Will fit Construction Attachment buckets with pre-drilled weld in edges based on bucket model.
Hydraulic Breakers – Mid & Large Excavators
Construction Attachments Hydraulic Breaker for Mid-Large Excavators are designed for construction and demolition of concrete structures, rocks, asphalt, and more.
Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.
- Constructed of high strength steel to provide structural durability
- Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
- Cushion Damper provides protection to the host machine
- Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker
- Specify make and model of host machine when placing order
- Weights may vary based on selected hitch styles
- Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
- Hydraulic lines < 60 gpm – use 1.0 inch lines AND > 60 gpm – use 1.25 inch lines.
- Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
- Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
- Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
- Read operators manual before use.
- Check hydraulic flow and pressure before use.
- Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.
Rub Rail
Rub Rail from Construction Attachments is made from 1/2'' x 8'' UHMW polyethylene plastic material for the Construction Attachment High Capacity Litter Bucket. It protects objects that will come in contact with the bucket and has a unique bolt pattern that allows use of all 4 edges before it has to be replaced.
PRODUCT FEATURES:
- Suitable for the Construction Attachment High capacity Litter Bucket
- Made of 1/2" x 8" UHMW polyethylene plastic material
- Protects objects that will come in contact with the bucket
- Unique bolt pattern allows complete use of all 4 edges before it is replaced
- Call for pricing
- Item #: 6CUEUHMW05X8X12
Xtreme Duty Swing-Over Pallet Fork Assembly
Duty Ratings, CAL Duty Ratings, Pallet Fork Attachments, Tractor Loader Backhoes, Xtreme Duty, All Products
The Swing-Over Pallet Fork Assembly is designed for industrial loaders and tractor loader backhoes to enabling more capability for you from a backhoe bucket you already own without the need for separate construction attachments. These forks fold for easy storage and fit most general and multi-purpose buckets.
