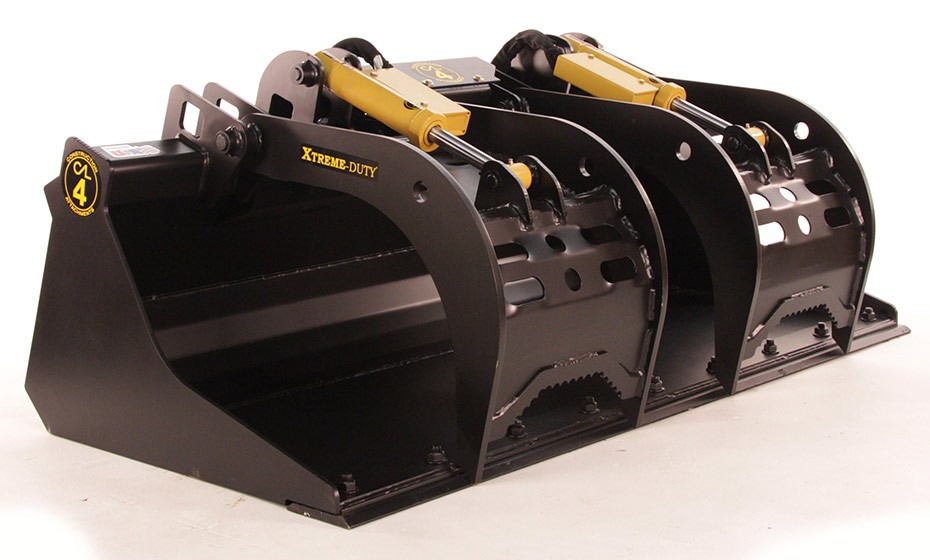

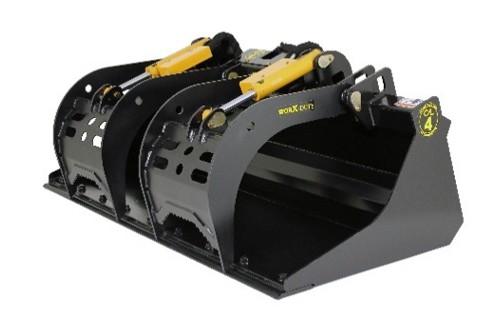

Worx Duty Grapple Bucket
Worx Duty Grapple Bucket Attachment designed for skid steer loaders and compact track loaders 51-100 horsepower. This attachment enables you to move hard-to-handle materials, brush and other awkward debris. Grapple has up to 44″ of fully usable space with no trapped space. This grapple bucket is available in 60″, 67″, 73″ and 82″ models.
Product Features:
- Grapple opening of 44” – fully usable, no trapped space
- Lids are uniform between our Worx Duty root grapple and Worx Duty grapple bucket line
- Standard reversible front bolt-on cutting edge
- Maximum clamping force of 3,600 lbs @ 3,000 psi
- A pair of 3/16” load transfer plates eliminates flex between the moldboard and hinge frame
- Radius moldboard for strength and easy unloading
- 5/8” x 6” bolt-on reversible cutting edge on 60”-82”
- ½” lid tines on 1¼” pivot pins with robust broken-out lid decks for strength
- Covered hoses for full protection in harsh environments
- Models include 60”, 67” , 73” and 82”
Designed for:
- For skid steer loaders and compact track loaders with 51 – 100 horsepower
- Enables operator to move hard-to-handle materials, as well as brush and other awkward debris
- Compliment to our popular Worx Duty root grapple line
