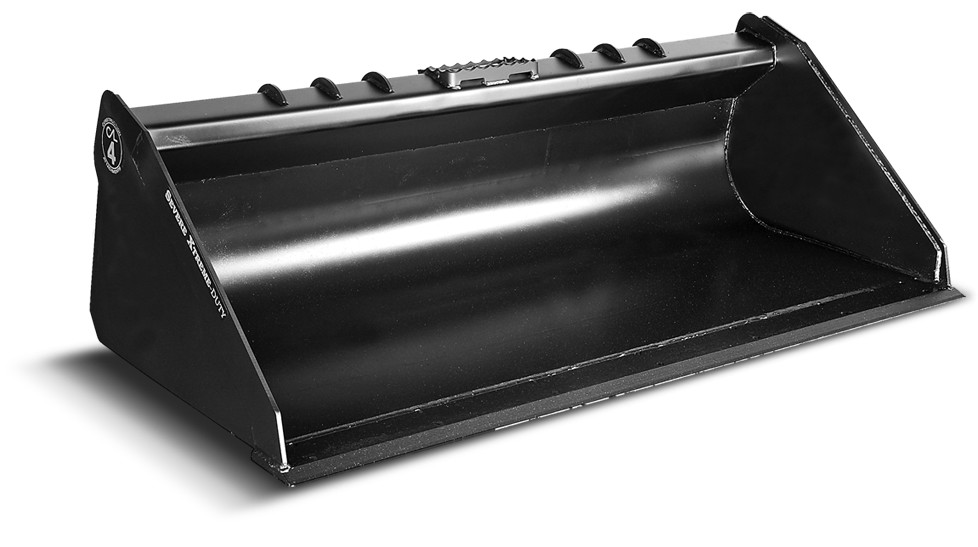

Severe Xtreme Duty Low Profile General Purpose Bucket
The Severe Xtreme DutyTM Low Profile General Purpose Bucket Attachment is designed with a high-strength, abrasion-resistant front cutting edge pre-drilled to accommodate bolt-on attachment options and is designed for compatibility with rubber tire or rubber track host machines up to 130 horsepower. This bucket is available in 67″, 73″, 78″, 84″ and 88″ models.
Product Features:
- For rubber tire or rubber track host machines up to 130 horsepower
- Extended bottom design provides front edge visibility for machine operator
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant front cutting edge accommodates all bolt-on attachments
- A solid 6″ edge is attached to buckets with weld-on teeth
- Models include 67″, 73″, 78″, and 84″
Front edge options:
- Large Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Bar
Shipping & Delivery
Related products
Bolt-On and Weld-On Teeth
Bolt-On Teeth are for use with all Construction Attachment general purpose and 4-in-1 multi-purpose buckets when digging, excavating or loosening compacted soil.
6BTCTE05: Regular Bolt on Tooth
GP: Compact 60” to 72” & Xtreme 62” to 78”
4in1: Compact 54” to 72” & Xtreme 60” to 76”
6BTCTE34: Large Bolt on Tooth
GP: Xtreme 84”, Severe Xtreme 67” to 88”, Ultra 73” to 84”
4in1: Severe Xtreme 67” to 84”, Ultra 73” to 84”, Industrial 88” to 93”
6BTCTE34: has replaceable tips & roll pin
6BTCTI01: AD-156 Tip
6BTCPI01: 156 Coil Roll Pin
6BTCTE06: GP & 4in1 Weld on Tooth
GP: Xtreme 62” to 84”, Severe Xtreme 67” to 88”
4in1: Xtreme 67” to 76”, Severe Xtreme 67” to 84”, Ultra 73” to 84”
6BTCTE06 has replaceable tip & pin
6BTCTI03: 8330 Tip
6BTCPI02: RP-H23 Rubber Flex Pin
Hydraulic Breakers – Mid & Large Excavators
Construction Attachments Hydraulic Breaker for Mid-Large Excavators are designed for construction and demolition of concrete structures, rocks, asphalt, and more.
Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.
- Constructed of high strength steel to provide structural durability
- Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
- Cushion Damper provides protection to the host machine
- Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker
- Specify make and model of host machine when placing order
- Weights may vary based on selected hitch styles
- Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
- Hydraulic lines < 60 gpm – use 1.0 inch lines AND > 60 gpm – use 1.25 inch lines.
- Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
- Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
- Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
- Read operators manual before use.
- Check hydraulic flow and pressure before use.
- Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.
Hydraulic Breakers – Skid Steers
onstruction Attachments Hydraulic Breaker for Skid Steer Loaders are designed for construction and demolition of concrete structures, rocks, asphalt, and more.
Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.
- Constructed of high strength steel to provide structural durability
- Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
- Cushion Damper provides protection to the host machine
- Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker
- Specify make and model of host machine when placing order
- Weights may vary based on selected hitch styles
- Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
- Hydraulic lines < 60 gpm – use 1.0 inch lines AND > 60 gpm – use 1.25 inch lines.
- Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
- Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
- Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
- Read operators manual before use.
- Check hydraulic flow and pressure before use.
- Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.
