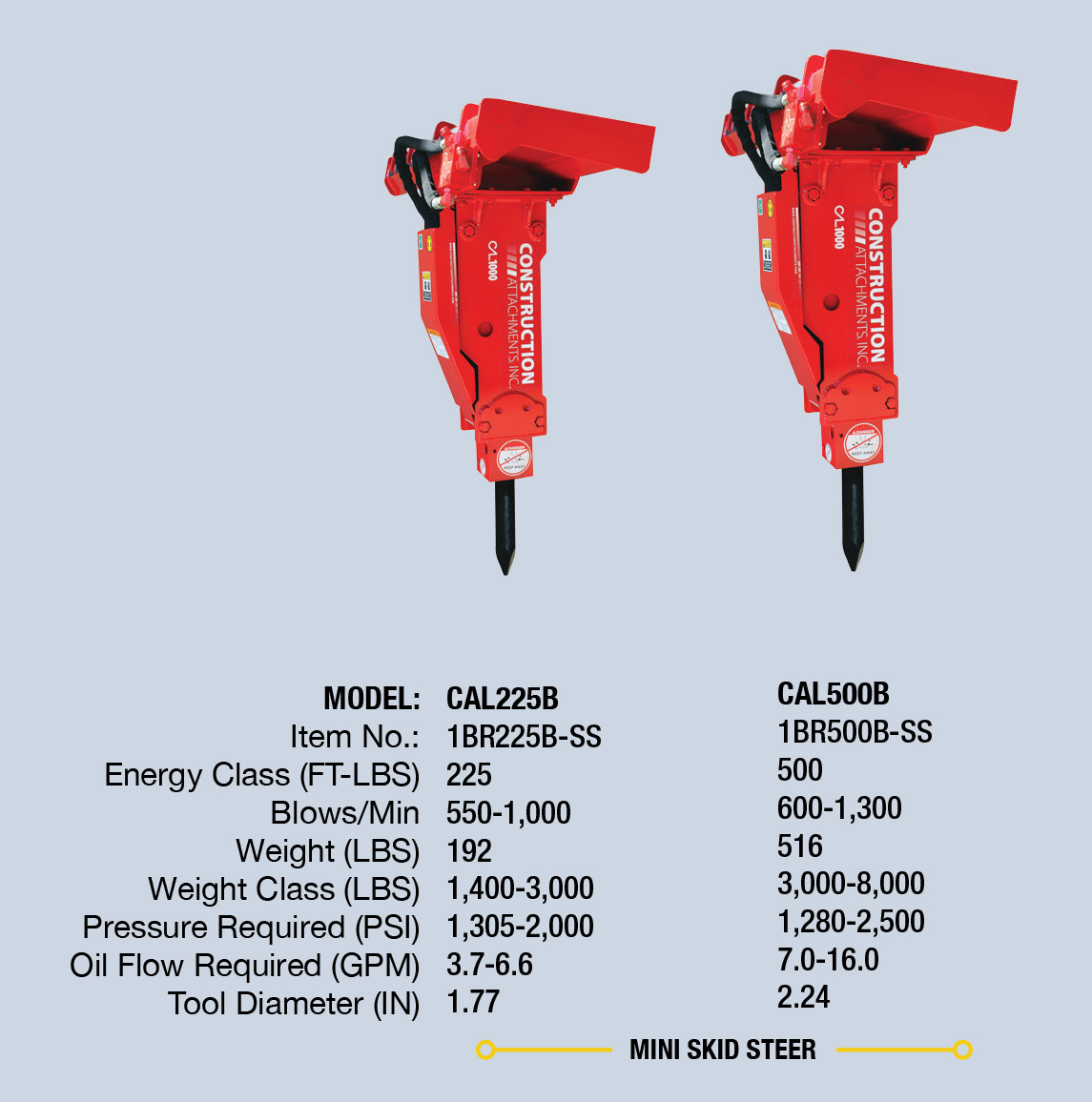

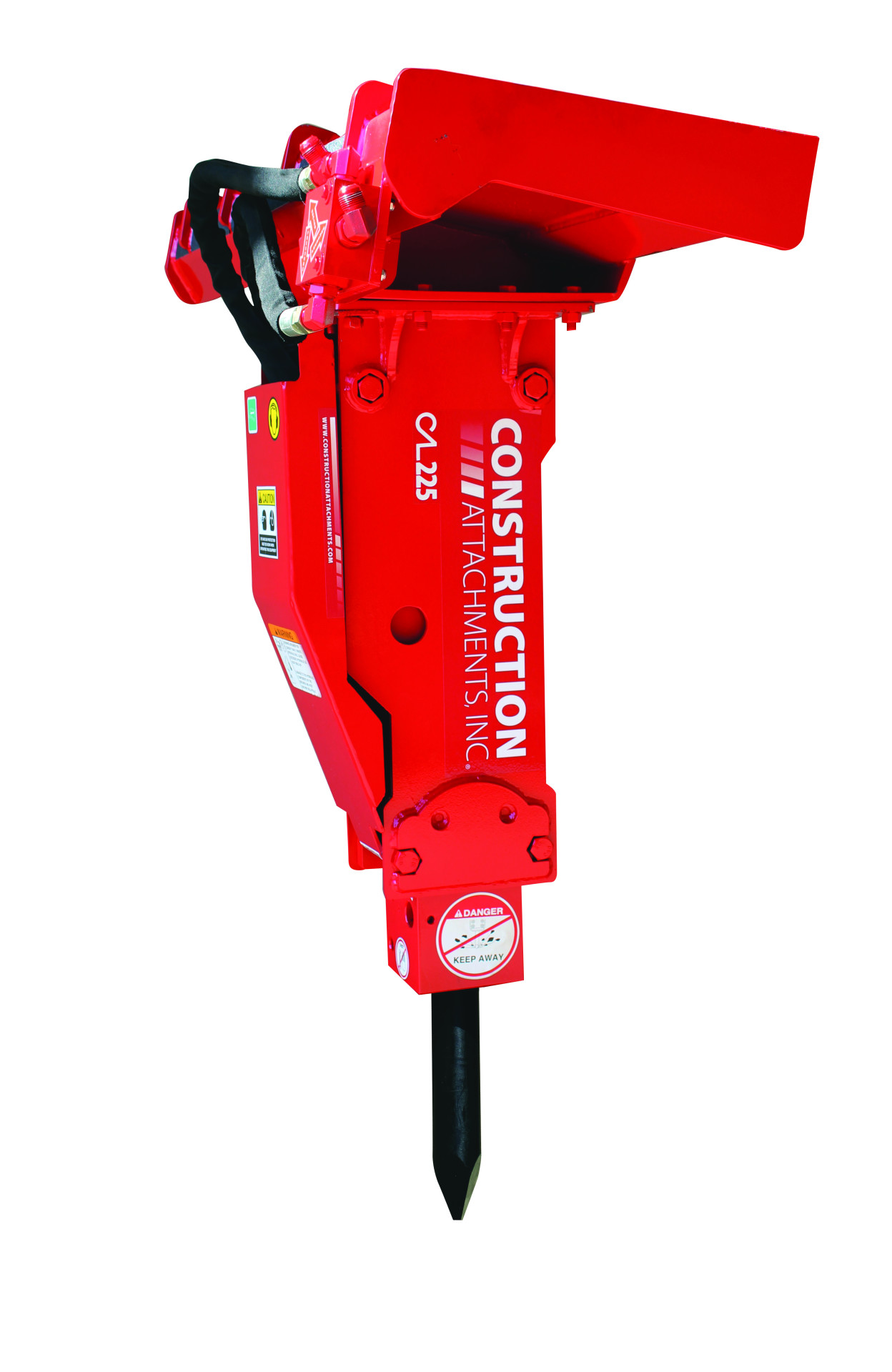

Hydraulic Breakers – Mini Skid Steers
Construction Attachments Hydraulic Breaker for Skid Steer Loaders are designed for construction and demolition of concrete structures, rocks, asphalt, and more.
Designed for aiding in construction and demolition of concrete structures, rocks, asphalt,?etc.
- Constructed of high strength steel to provide structural durability
- Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
- Cushion Damper provides protection to the host machine
- Auto Stop (Anti Blank Fire) System ensures less problem of the?components and longer life of the breaker
Standard equipment includes:
(1) base breaker unit
(1) mounting bracket
(1) chisel point
(1) tool kit
(1) nitrogen gauge for checking pressure
(1) operators manual
- Specify make and model of host machine when placing order
- Weights may vary based on selected hitch styles
?
?
- Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
- Hydraulic lines < 60 gpm ? use 1.0 inch lines AND > 60 gpm ? use 1.25 inch lines.
- Dry firing hydraulic breaker can result in damage to internal components of breaker?and host machine.
- Chisel paste must be used with hydraulic breakers, using high temperature grease as a?substitution for chisel paste will cause damage to components of breaker.
- Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
- Read operators manual before use.
- Check hydraulic flow and pressure before use.
- Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.
Shipping & Delivery
Related products
Bolt-On and Weld-On Teeth
Bolt-On Teeth are for use with all Construction Attachment general purpose and 4-in-1 multi-purpose buckets when digging, excavating or loosening compacted soil.
6BTCTE05: Regular Bolt on Tooth
GP: Compact 60” to 72” & Xtreme 62” to 78”
4in1: Compact 54” to 72” & Xtreme 60” to 76”
6BTCTE34: Large Bolt on Tooth
GP: Xtreme 84”, Severe Xtreme 67” to 88”, Ultra 73” to 84”
4in1: Severe Xtreme 67” to 84”, Ultra 73” to 84”, Industrial 88” to 93”
6BTCTE34: has replaceable tips & roll pin
6BTCTI01: AD-156 Tip
6BTCPI01: 156 Coil Roll Pin
6BTCTE06: GP & 4in1 Weld on Tooth
GP: Xtreme 62” to 84”, Severe Xtreme 67” to 88”
4in1: Xtreme 67” to 76”, Severe Xtreme 67” to 84”, Ultra 73” to 84”
6BTCTE06 has replaceable tip & pin
6BTCTI03: 8330 Tip
6BTCPI02: RP-H23 Rubber Flex Pin
Compact Snow Blade Specialty Attachment
Compact Snow Blade is a specialty attachment with a four-way blade capable of up to 30 degrees of angle (left or right) with a manual or optional hydraulic kit*. This snow/dozer blade is designed for use on compact tractor loaders and skid steers up to 50 horsepower with a 22.5" moldboard and a 75 degree angle of attack at grade level. Attachment is available in 60", 72" and 82" wide models, Manual or Hydraulic operation, and Steel or Rubber edge options.
Grass Assassin Cutter Series
Product Features:
Triangular 5/8 Steel Vented Blade Carrier
BUSHHOG STYLE CUTING BLADES
Bent AXIS Motor
One piece top deck design for strength and structural durability
High Lift Flange Blade for Refined Material
SIDE DISCHARGE SHOOT- refines material
PACK OUT TOOL BOX OR COOLER MOUNT
Standard Motor Cover & Spindle Guard
Fully welded bolt protector on blade carrier
Available jumper hose lengths: 8 ft, and 10 ft
Case Drain Required to Run
Hydraulic Breakers – Mid & Large Excavators
Construction Attachments Hydraulic Breaker for Mid-Large Excavators are designed for construction and demolition of concrete structures, rocks, asphalt, and more.
Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.
- Constructed of high strength steel to provide structural durability
- Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
- Cushion Damper provides protection to the host machine
- Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker
- Specify make and model of host machine when placing order
- Weights may vary based on selected hitch styles
- Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
- Hydraulic lines < 60 gpm – use 1.0 inch lines AND > 60 gpm – use 1.25 inch lines.
- Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
- Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
- Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
- Read operators manual before use.
- Check hydraulic flow and pressure before use.
- Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.
