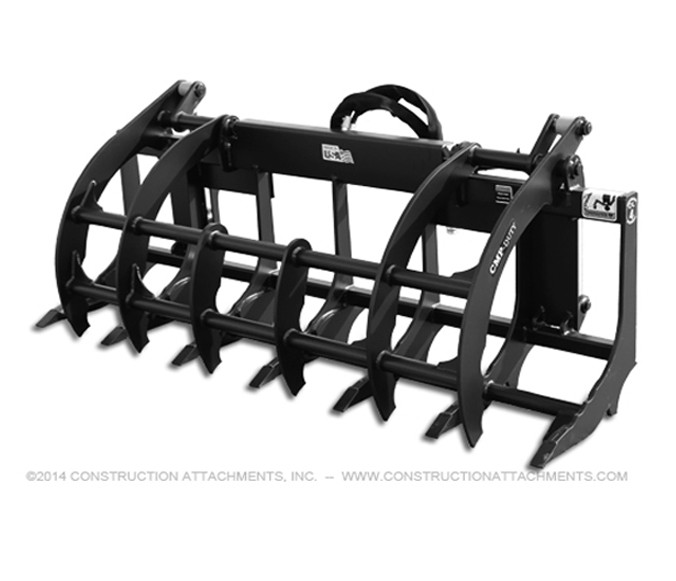

Compact Root Rake Grapple – Tractor Loader Attachment
Compact Root Rake Attachment designed for tractor loaders. Designed to handle a wide range of jobs for excavating roots, brush, rocks, and other debris to loosen and smooth the ground while leaving behind the soil. Also, used for transport of brush and debris. Grapple lids may also be used for back-dragging. Ideal for construction, agriculture, landscaping, industrial and many other applications.
Product Features:
- For tractor loaders up to 50 horsepower
- Avaialble in 60″, 66″, and 72″
- Rake may be purchased with or without grapple
- Universal Skid Steer Quick Attach
- 1″ Rake Tine Thickness
- 2.25″ Cylinder Bore
- Hoses and couplers included
Designed for:
- Excavating roots, brush, rocks and other debris
- Loosen and smooth ground while leaving soil behind
- Transport brush and debris
- Grapple lid can be used for back-dragging
Reviews (0)
Shipping & Delivery
Related products
Compact Root Grapple – Tractor Loader Attachment
Compact Root Grapples designed for compact tractor loaders up to 50 horsepower, and are the ideal attachment for removal of debris such as rocks, roots, and general site cleanup. Rear hitch is designed to match host machines. This grapple is available in 54", 60", 66" and 72" models.
Product Features:
- Maximum grapple clamping force: 2,500 lbs @ 2,800 psi
- Large grapple opening to accommodate the most demanding jobs
- Fully integrated 3/8” tines increasing grapple strength
- Bottom tines are tied together with 1 5/8” OD schedule 80 pipe
- Rear hitch designed to match host machine
- Models include 54”, 60”, 66” and 72”
- For compact tractor loaders up to 50 horsepower
- Ideal attachment for removal of debris such as rocks, roots, as well as general site clean-up
Compact Snow Blade Specialty Attachment
Compact Snow Blade is a specialty attachment with a four-way blade capable of up to 30 degrees of angle (left or right) with a manual or optional hydraulic kit*. This snow/dozer blade is designed for use on compact tractor loaders and skid steers up to 50 horsepower with a 22.5" moldboard and a 75 degree angle of attack at grade level. Attachment is available in 60", 72" and 82" wide models, Manual or Hydraulic operation, and Steel or Rubber edge options.
Severe Xtreme Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Severe Xtreme, Grapple Attachments, Skid Steer Loaders, Track Loaders, All Products
Severe Xtreme Duty Grapple Bucket is designed for rubber tire host machines up to 130 horsepower. It is the ideal attachment for high-repetition use in harsh environments.
PRODUCT FEATURES:
- Ideal attachment for harsh environments
- Used for the removal of building, forestry, and scrap yard debris
- Low profile for improved load visibility
- 19" wide lids are uniform between our Root Grapple and Grapple Bucket lines
- Large grapple opening of over 44" designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 LBS @ 3,000 psi
- 3/4" x 6" weld-on cutting edge for all models
- Accepts a reversible bolt-on edge
- Radius moldboard for improved unloading and added strength
- 1" lid tines and heavily-gusseted lids
- Covered hoses for full protection in harsh environments
- Rear hitch designed to match host machine
- 3/4" lid tines and heavily-gusseted lids; neoprene bushings for high repetition
- Greaseable pins and 2-3/4" bore cushion cylinders
- Rear hitch designed to match host machine
Stump Bucket Grapple Severe Xtreme Duty Attachment
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Compact Track Loaders, Severe Xtreme, Skid Steer Loaders, Specialty Attachments, Stump Buckets, All Products
The Severe Xtreme Duty Stump Bucket Grapple attachment features a bucket bottom with an aggressive tapered cutting edge. The attachment's angled cylinder maximizes strength with over 4,100 lbs of clamp force at the tip max at 3,000 psi. The design allows operators to take advantage of a huge 55" grapple opening to meet every challenge.
Product Features:
A — Bucket bottom reinforced and protected with a series of 1/2" x 2" ribs/wear-bars across the entire bottom surface
B — Tapered cutting edge with CNC cut tooth pattern allows real cutting action as opposed to teeth cut in standard "flat mild" steel that cannot effectively cut
C — Cylinder angle maximizes force while still offering a huge opening
D — Large diameter pins to reduce the wearing effects of repetition
- Angled grapple frame and 3/4" material result in unparalleled strength and rigidity
- Specially-designed load transfer plate
- 3" bore cylinder generates over 4,100 LBS of clamping force at the tip max at 3,000 psi
- Price includes hydraulic hoses and fittings
- Over 55" grapple opening
Worx Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Compact Track Loaders, Skid Steer Loaders, Worx Duty, All Products
Worx Duty Grapple Bucket Attachment is designed for skid steer loaders and compact track loaders 51-100 horsepower. This attachment enables you to move hard-to-handle materials, brushes, and other awkward debris. Grapple has up to 44" of fully usable space with no trapped space. This grapple bucket is available in 60", 67", 73", and 82" models.
Product Features:
- Grapple opening of 44" — fully usable, no trapped space
- Lids are uniform between our Worx Duty root grapple and Worx Duty grapple bucket line
- Standard reversible front bolt-on cutting edge
- Maximum clamping force of 3,600 lbs @ 3,000 psi
- A pair of 3/16" load transfer plates eliminates flex between the moldboard and hinge frame
- Radius moldboard for strength and easy unloading
- 5/8" x 6" bolt-on reversible cutting edge on 60"-82" models
- 11 lid tines on 1" pivot pins with robust broken-out lid decks for strength
- Covered hoses for full protection in harsh environments
- Models include 60", 67", 73" and 82"
- Skid steer loaders and compact track loaders with 51 - 100 horsepower
- Enables operator to move hard-to-handle materials, as well as brush and other awkward debris
- Compliment to our popular Worx Duty root grapple line
Xtreme Duty Grapple Bucket
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Grapple Bucket Attachment designed for skid steer and tractor loaders 51-150 horsepower. Grapple buckets are designed for harsh environments to be used to remove building, forestry, and scrap yard debris. Large opening of over 44" to clamp large loads evenly. This grapple bucket is available in 60", 67", 73", and 82" models.
Product Features:
- Low profile for improved load visibility
- 19 wide lids are uniform between our Root Grapple and Grapple Bucket lines
- Large grapple opening of over 44 designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 lbs @ 3,000 psi
- 5/8" x 6" bolt-on reversible cutting edge for all models
- Radius mold board for improved unloading and added strength
- lid tines and heavily-gusseted lids
- 1 pivot pins and 2" bore cylinders
- Covered hoses for full protection in harsh environments
- Rear hitch designed to match host machine
- Models include 60, 67, 73 and 82
- For skid steer loaders and tractor loaders with 51 - 150 horsepower
- Ideal attachment for harsh environments
- Used for the removal of building, forestry and scrap yard debris
Xtreme Duty Root Grapple
Duty Ratings, CAL Duty Ratings, Grapple Attachments, Skid Steer Loaders, Tractor Loaders, Xtreme Duty, All Products
Xtreme Duty Root Grapples are designed for skid steers and tractor loaders with 51-150 horsepower. These attachments are ideal for the removal of debris such as rocks and roots, as well as general site clean-up. Rear hitch is designed to match host machines. This grapple is available in 66", 73", 78", and 84" models.
Product Features:
- Front gussets to act as stops for closing lids
- Self-contained hydraulic system to minimize hose damage
- Covered hoses for full protection in harsh environments
- Designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 lbs @ 3,000 psi
- lid tines and heavily-gusseted lids
- 1" pivot pins and 2" bore cylinders
- Rear hitch designed to match host machine
- Models include 66", 73", 78" and 84"
- For skid steer loaders and tractor loaders with 51-150 horsepower
- Ideal attachment for harsh environments, clearing brush, the removal of debris such as rocks and roots, as well as general site clean-up
