Description

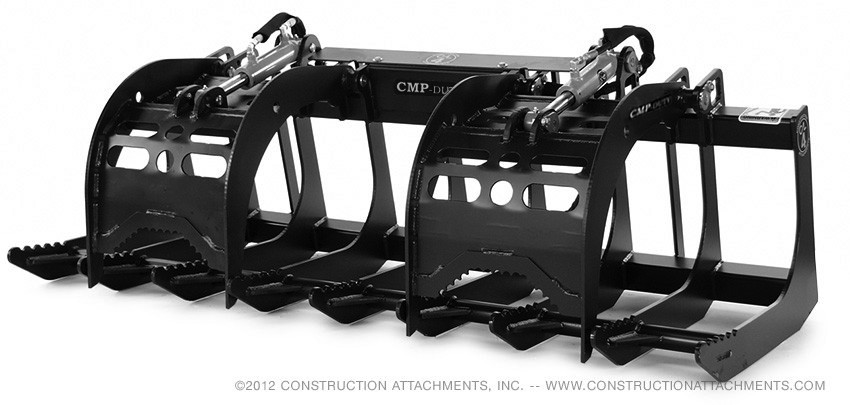

COMPACT DUTY Root Grapple
The COMPACT DUTY Root Grapple from Construction Attachments is designed for compact tractor loaders up to 50 horsepower. Built for land clearing, property maintenance and site cleanup, this compact tractor root grapple makes it easier to grab, lift and move roots, rocks, brush and other difficult debris.
With up to 2,500 lbs of clamping force at 2,800 PSI and a 29.5″ maximum grapple opening, the attachment provides secure control of irregular loads while maintaining a size and weight appropriate for compact tractor applications.
COMPACT DUTY Root Grapple Features
- Designed for compact tractor loaders up to 50 HP
- 2,500 lbs maximum clamping force @ 2,800 PSI
- 29.5″ maximum grapple opening
- Available in 54″, 60″, 66″ and 72″ widths
- Fully integrated 3/8″ grapple tines
- Reinforced bottom tine construction
- Bottom tines tied together with 1-5/8″ OD Schedule 80 pipe
- Greaseable pins and bosses
- Rear hitch designed to match the host machine
- Multiple widths for proper machine matching
- 24-Month Factory Warranty
Built for Roots, Rocks, Brush & Debris
A root grapple gives a compact tractor the ability to securely grab and transport material that can be difficult to control with a conventional bucket.
The COMPACT DUTY Root Grapple is ideal for:
- Root removal
- Brush clearing
- Rock handling
- Limb and branch cleanup
- Storm debris
- Property maintenance
- Land clearing
- Site cleanup
- Landscaping
- General material handling
The open grapple design helps operators handle irregular material while providing good visibility through the attachment.
2,500 LB Hydraulic Clamping Force
The hydraulic grapple provides up to 2,500 lbs of maximum clamping force at 2,800 PSI.
That clamping force helps securely hold brush, roots, rocks and other uneven loads during lifting and transport.
In addition, the 29.5″ maximum grapple opening provides room to handle bulky material encountered during property cleanup and land-clearing work.
Reinforced Tine Construction
The COMPACT DUTY Root Grapple uses fully integrated 3/8″ grapple tines for added strength and durability.
The bottom tines are reinforced by 1-5/8″ OD Schedule 80 pipe, tying the tine structure together to provide additional support during demanding grapple work.
Greaseable pins and bosses also make routine lubrication and maintenance easier.
Four Widths for Compact Tractor Loaders
Choose the grapple width that best matches your tractor loader and application.
| Width | Tines | Max Opening | Clamping Force | Est. Weight |
|---|---|---|---|---|
| 54″ | 8 | 29.5″ | 2,500 lbs @ 2,800 PSI | 444 lbs |
| 60″ | 8 | 29.5″ | 2,500 lbs @ 2,800 PSI | 446 lbs |
| 66″ | 9 | 29.5″ | 2,500 lbs @ 2,800 PSI | 484 lbs |
| 72″ | 9 | 29.5″ | 2,500 lbs @ 2,800 PSI | 582 lbs |
These model specifications match the current product sheet you supplied.
Match the Grapple to Your Tractor
Attachment weight matters on a compact tractor because the grapple itself consumes part of the loader’s available lifting capacity.
For that reason, don’t choose a root grapple based on width alone. Consider:
- Tractor and loader model
- Loader lift capacity
- Grapple weight
- Required width
- Hydraulic capability
- Hitch configuration
- Intended material and application
Always stay within the rated capacity of the tractor and loader.
When ordering, provide the tractor and loader make and model so the appropriate hitch and grapple configuration can be confirmed.
Frequently Asked Questions
What is a compact tractor root grapple used for?
A compact tractor root grapple is designed for grabbing and moving roots, rocks, brush, limbs and debris during land clearing, landscaping and property maintenance.
What size tractor is this grapple designed for?
The COMPACT DUTY Root Grapple is designed for compact tractor loaders up to 50 horsepower.
How much clamping force does it have?
Maximum grapple clamping force is 2,500 lbs at 2,800 PSI.
How far does the grapple open?
The maximum grapple opening is 29.5 inches.
What widths are available?
The COMPACT DUTY Root Grapple is available in 54″, 60″, 66″ and 72″ widths.
How much does the root grapple weigh?
Depending on width, estimated attachment weight ranges from approximately 444 to 582 lbs.
How many tines does it have?
The 54″ and 60″ models have 8 tines, while the 66″ and 72″ models have 9 tines.
Will this root grapple fit my compact tractor?
Compatibility depends on your tractor, loader, hitch and hydraulic configuration. Specify your tractor and loader make and model when ordering so the proper configuration can be confirmed.
Choose Your COMPACT DUTY Root Grapple
Choose from 54″, 60″, 66″ or 72″ widths based on your compact tractor loader and application.
For clearing brush, handling roots and rocks, cleaning storm debris or maintaining property, the COMPACT DUTY Root Grapple provides powerful hydraulic clamping in a package designed specifically for compact tractor loaders.
Need help selecting the right model? Call Construction Attachments at 800-255-4461 with your tractor and loader make and model.
24-Month Factory Warranty
