| MODEL | WIDTH (IN) | # OF TINES | MAX GRAPPLE OPENING (IN) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|
| 1RGCMP54 | 54″ | 8 | 454 | |
| 1RGCMP60 | 60″ | 8 | 29.5″ | 472 |
| 1RGCMP66 | 66″ | 9 | 500 | |
| 1RGCMP72 | 72″ | 9 | 518 |

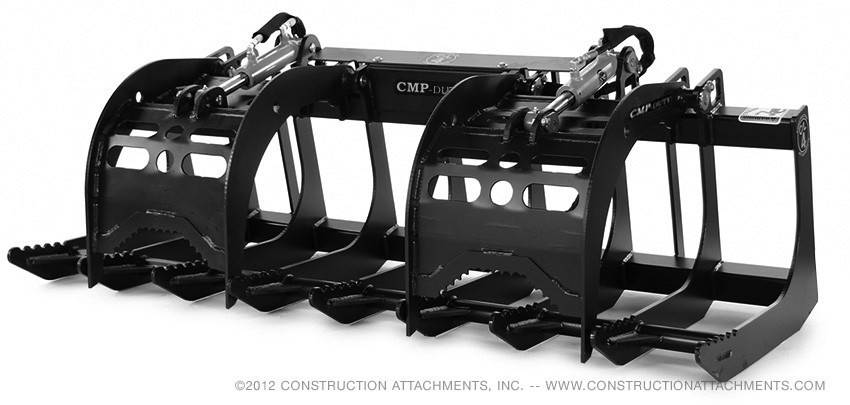

Compact Root Grapple – Tractor Loader Attachment
Compact Root Grapples designed for compact tractor loaders up to 50 horsepower, and are the ideal attachment for removal of debris such as rocks, roots, and general site cleanup. Rear hitch is designed to match host machines. This grapple is available in 54″, 60″, 66″ and 72″ models.
Product Features:
- Maximum grapple clamping force: 2,500 lbs @ 2,800 psi
- Large grapple opening to accommodate the most demanding jobs
- Fully integrated 3/8” tines increasing grapple strength
- Bottom tines are tied together with 1 5/8” OD schedule 80 pipe
- Rear hitch designed to match host machine
- Models include 54”, 60”, 66” and 72”
Designed for:
- For compact tractor loaders up to 50 horsepower
- Ideal attachment for removal of debris such as rocks, roots, as well as general site clean-up
